Frameset
The frame is made of AL6061 aluminum alloy, with full flat welding and putty repair process. All cables are routed internally within the frame.
Front fork with internal cable routing, AL6061 seamless aluminum alloy front fork with disc brakes.

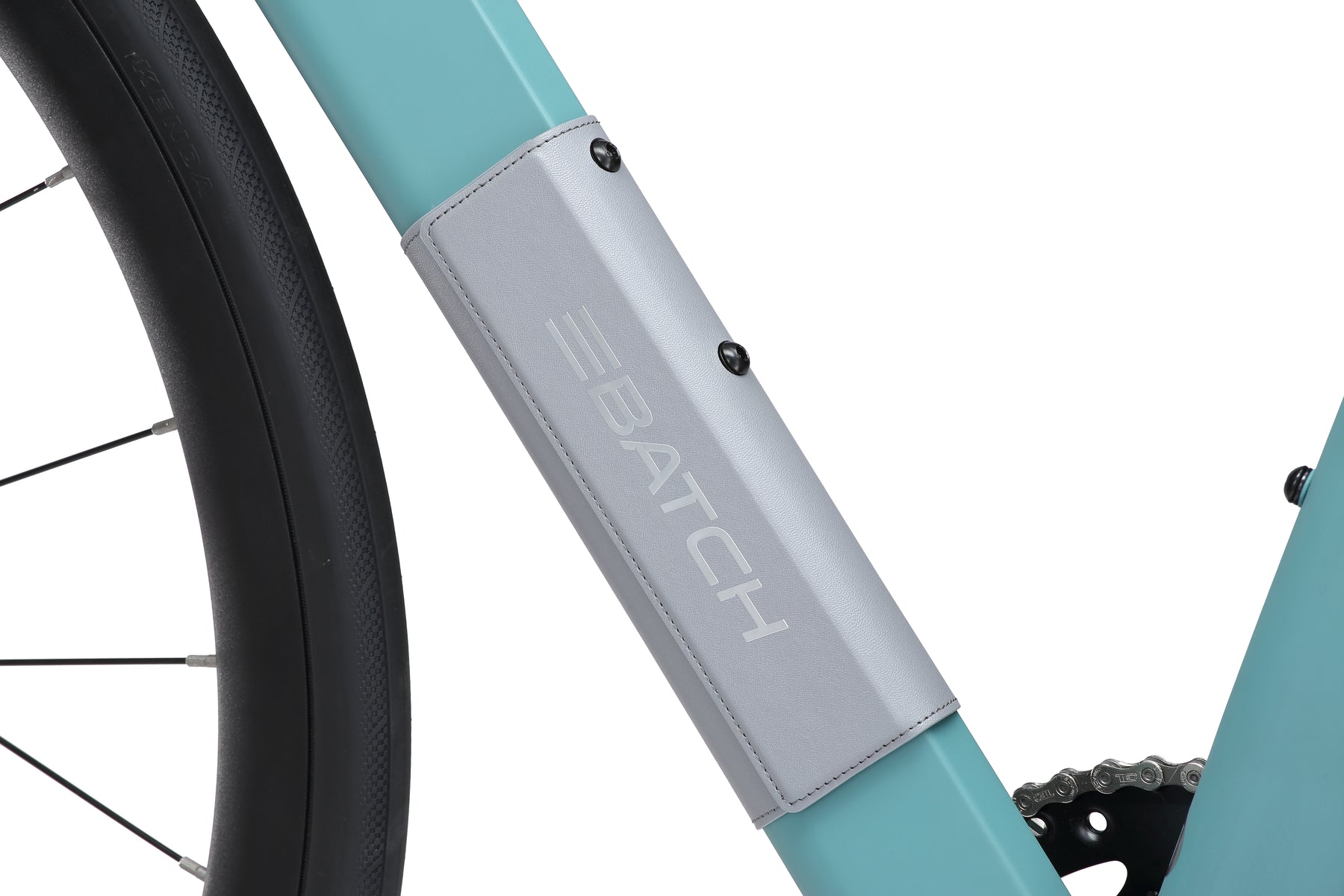

EcoGuard microfiber double-sided magnetic sheath
Transmission & Braking System
Blueprint R9 2*11S Shifter
Rear derailleur Blueprint R911S rear derailleur
Haomeng hollow aluminum alloy crankset; 34-50T
Hollow Integrated Central Shaft, Maintenance-Free Bearing
Flywheel blueprint: High-strength forged steel cassette flywheel; 11-32T
TEC Tecs rust-proof chain

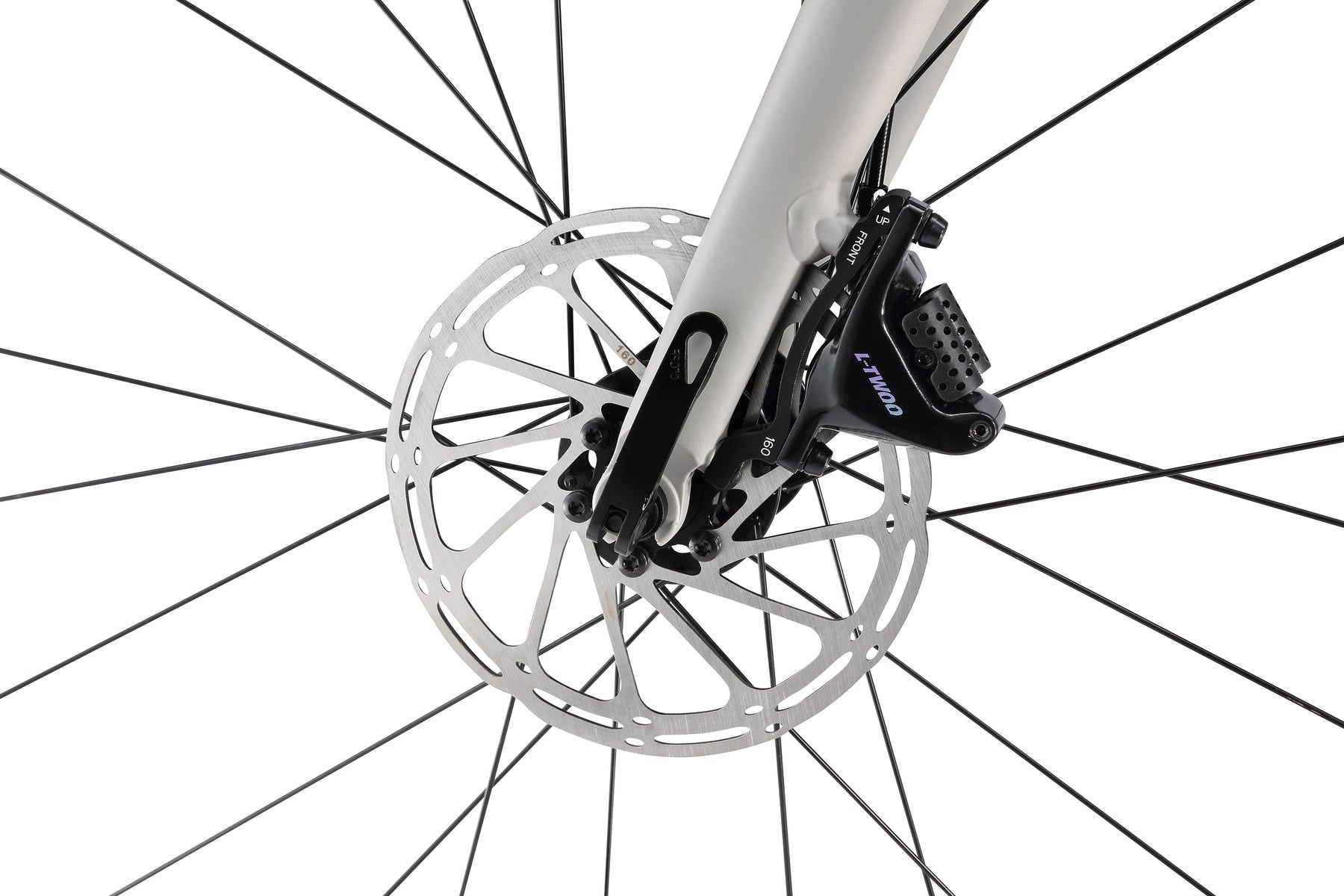

Blueprint R9 pure hydraulic disc brake
Disc, high-strength stainless steel, front 160mm, rear 160mm
Control system

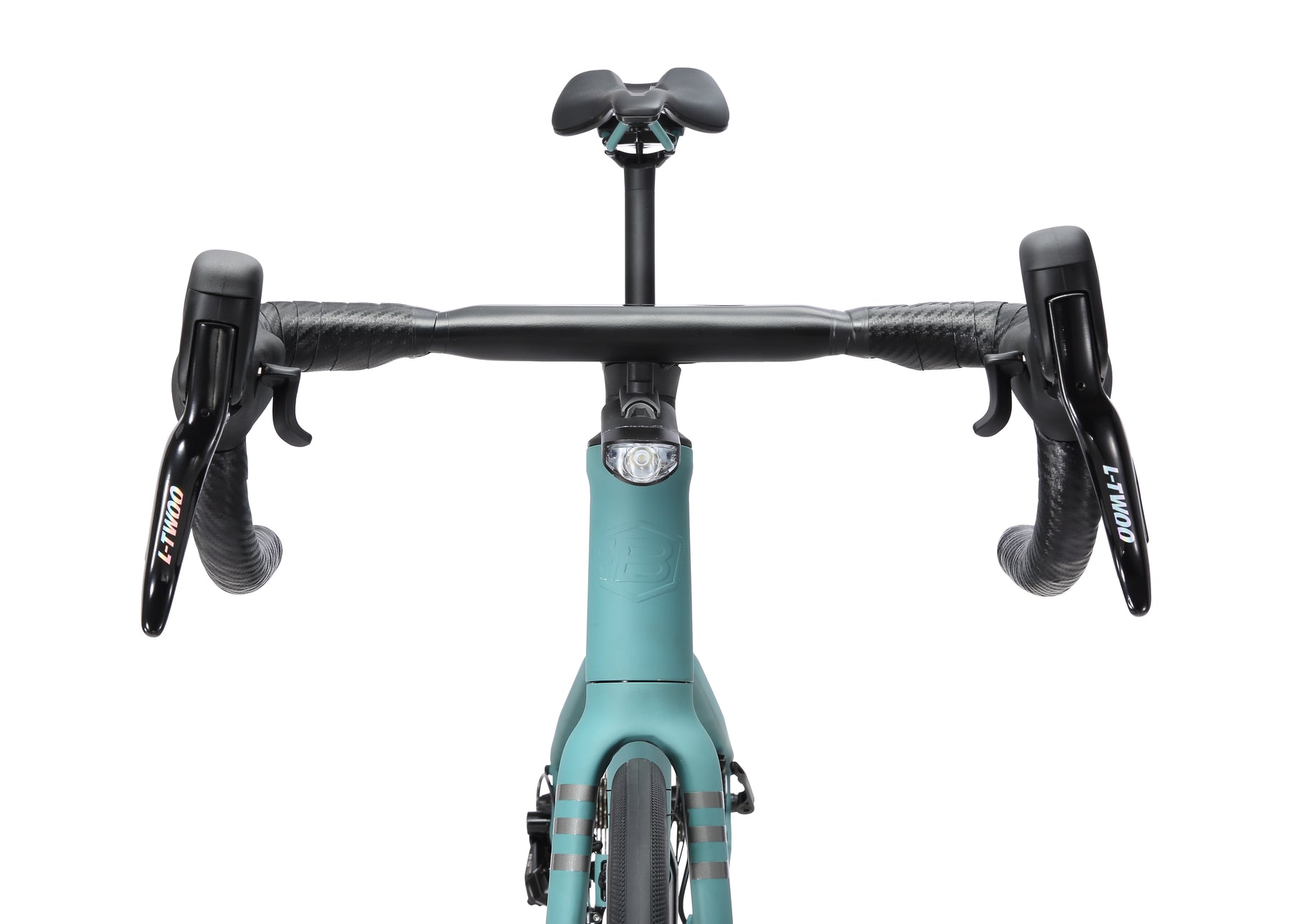

Aluminum alloy integrated handlebars
Handlebar grips, EVA material, batch custom handlebar grips
PVC seat cushion, batch custom seat cushion

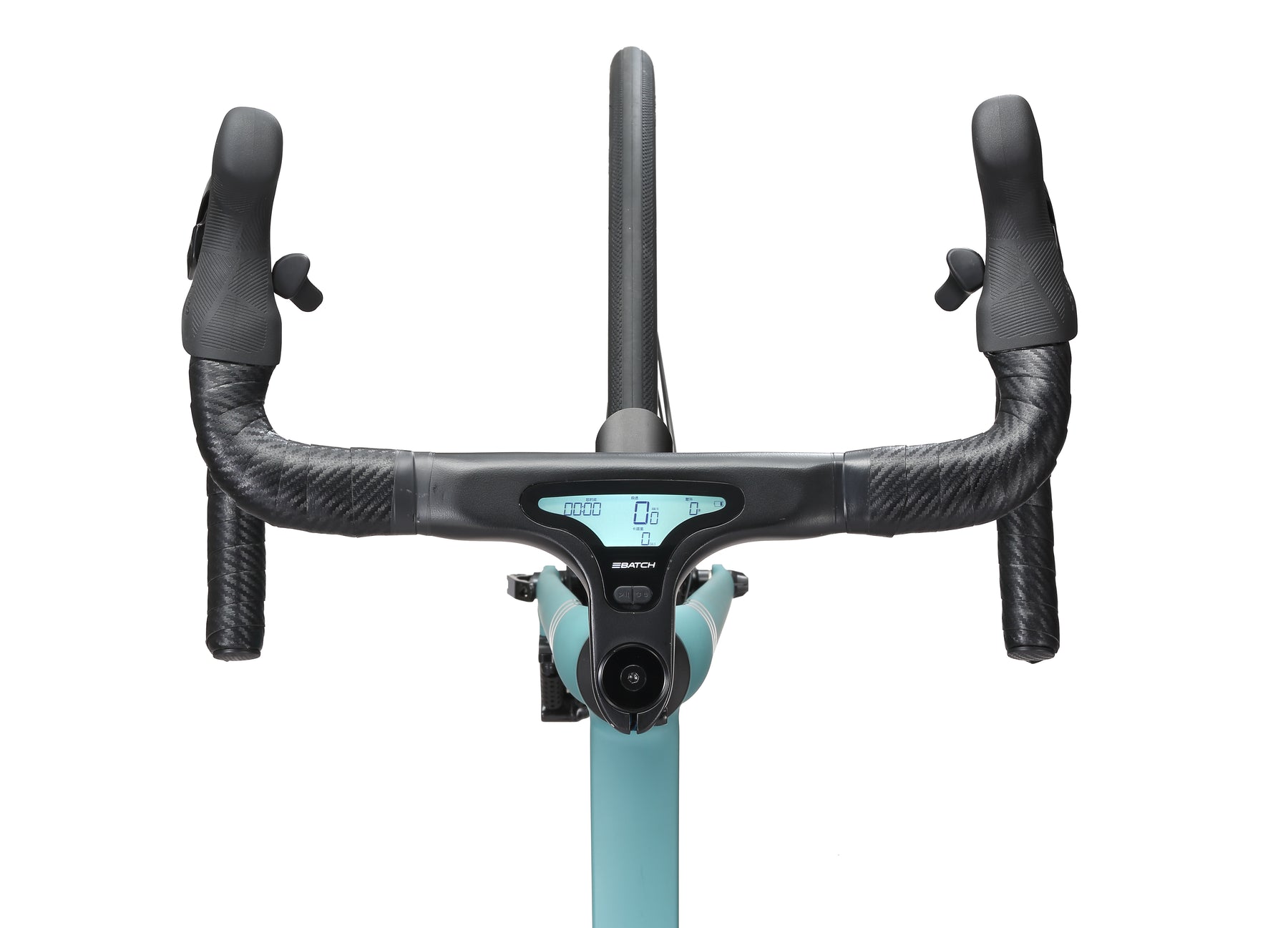

Instrument panel with high-brightness LED display; IP65 waterproof; approximately 30 hours of battery life.

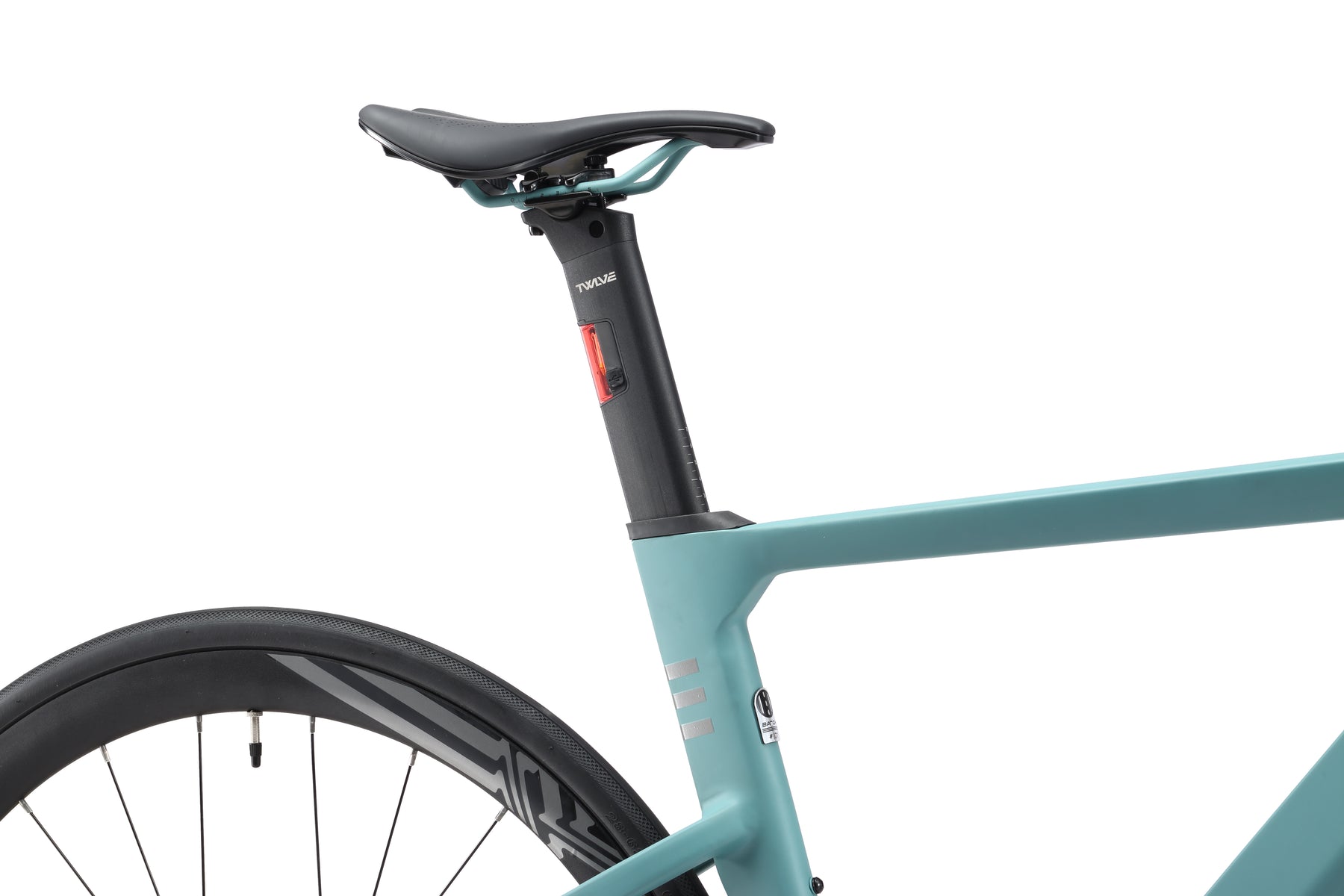

Seatpost: SuperMag teardrop-shaped super magnesium alloy; built-in taillights

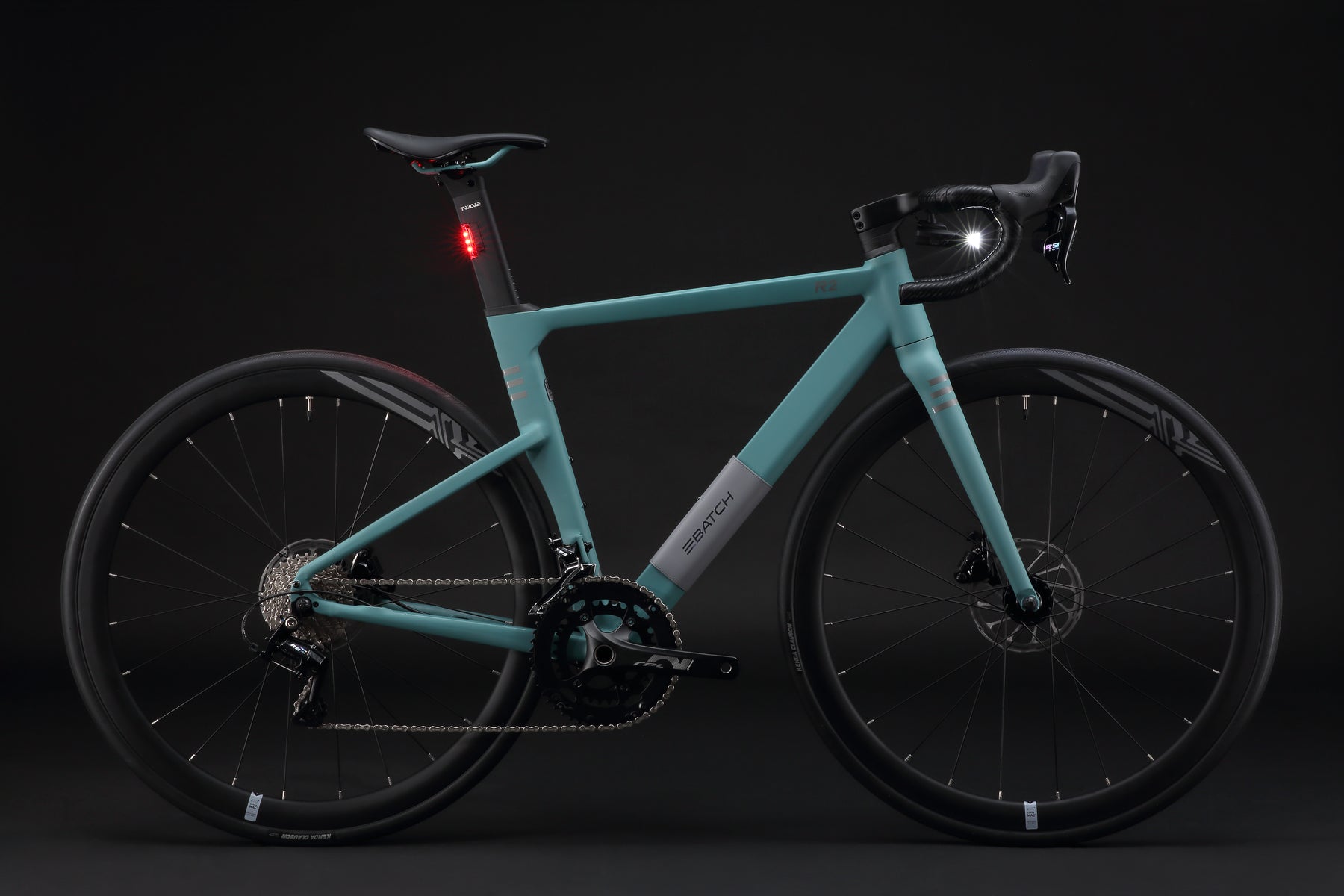

BATCH custom LED headlights: 400 lumens for the front lights and 6 lumens for the rear lights.
VeloCrypt Hidden Shield Tracking Tag
Wheel system
SuperMag high-strength magnesium alloy wheelset 700*28C bearing hubs
Inner tube, butyl inner tube valve, 60mm valve
Outer tire Kendall 700X28C
XXS Extra Extra Small: 150 - 161cm
XS Extra Small: 162 - 168cm
S Small: 169 - 181cm
M Medium: 182 - 188cm
L Large: 189 - 195cm
